RAPTOR
90 × 120 × 196 mm
Dimensions
D X H
640 gr
weight
1280 x 720
IR Resolution
Best In Class.
Trusted Worldwide.
RAPTOR is a compact, lightweight micro-Dual EO/IR camera that redefines long-range aerial observation. Featuring an impressive x80 zoom (x40 optical + x2 digital) and x8 digital IR zoom, powered by a 1280×720 HD thermal sensor, it delivers crystal-clear imagery both day and night. Designed for reliability in demanding environments, RAPTOR combines cutting-edge stabilization with rugged durability, making it the ultimate solution for surveillance, reconnaissance, target detection, and high-precision missions across a wide range of platforms.
360° Pan Rotation (Continuous)
Enhanced Thermal Sensor
Long Range Zoom
Complies With IP54
Illuminator (Optional)Sensors
ZOOM CAPABILITY
EO ZOOM ×80
Raptor turns distance into detail.
With its powerful 80× EO continuous zoom, it brings faraway targets into sharp focus – transforming wide-area scans into precise, close-up views in seconds.
From tracking movement across vast terrain to identifying the smallest features at extreme ranges, Raptor ensures no target is ever out of reach.

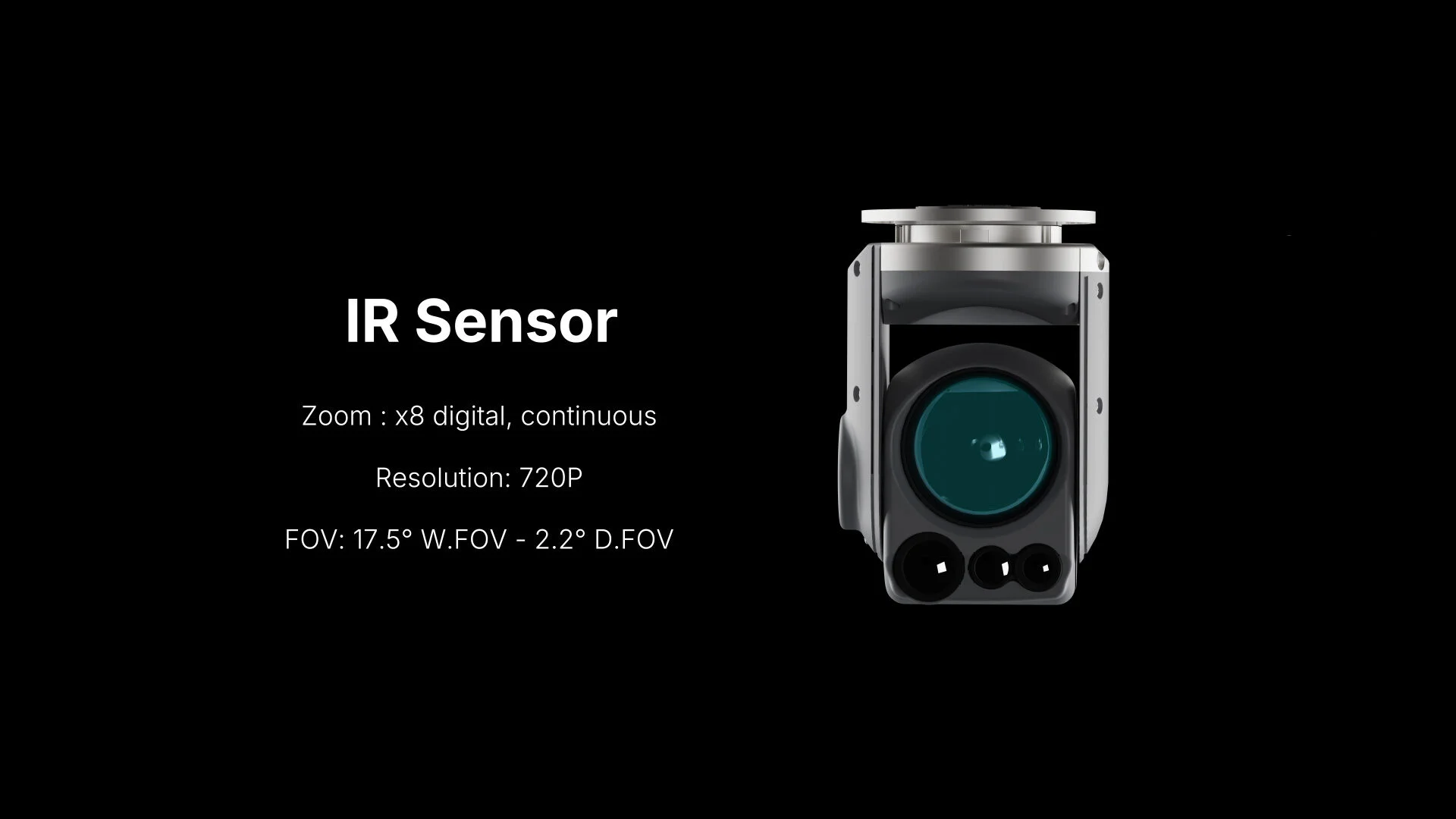

Enhanced IR Sensor
IR ZOOM ×8
The Raptor’s IR sensor delivers x8 digital continuous zoom for long-range detection, recognition, and tracking through stabilized thermal imaging. Designed for performance in total darkness, haze, smoke, or challenging weather, it reveals heat signatures with exceptional clarity at extended ranges. Continuous zoom enables operators to adapt quickly to mission needs, maintaining sharp detail and reliable target acquisition.
RAPTOR FAMILY

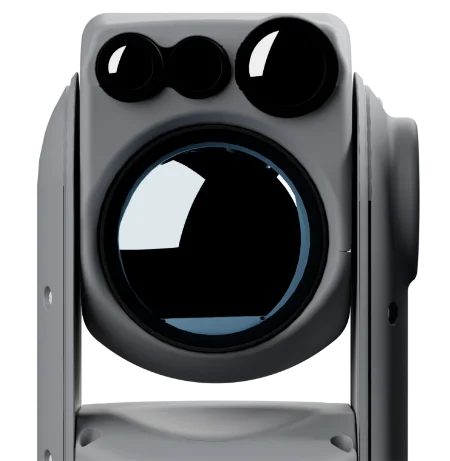

Raptor-360
Continuous 360° Roll
The Raptor-360 continuous roll rotation guarantees uninterrupted coverage from every angle. With infinite yaw movement and advanced stabilization, operators can seamlessly scan wide areas, track moving targets without losing lock, and maintain total situational awareness – with zero blind zones.
With endless rotation, Raptor ensures that no angle is ever out of sight.
Raptor-360-Sealed
Complies with Ip54 rating
Within the Raptor family, the Raptor-360-Sealed configuration is designed for missions that demand enhanced environmental protection.
With its sealed housing and IP54 rating, it delivers the same advanced performance and true 360° rotation as the standard RAPTOR-360 – while ensuring reliable operation in rain, dust, and challenging outdoor conditions.
IP54
Certified
Dust and Water resistant
Illuminator
(Optional)
As part of the Raptor’s modular options, the Illuminator adds the ability to project a focused beam for object marking and point indication in a mission.
Two alternatives for continuous illuminator:
1. Low output power with ~0.4 meter diameter spot size at 1 km range
2. High output power with ~1 meter diameter spot size at 1 km range
⚠️ Safety Notice:
This illuminator is not eye-safe and is classified as a Class 3B laser product.
All standard safety precautions and device labeling requirements must be observed.
